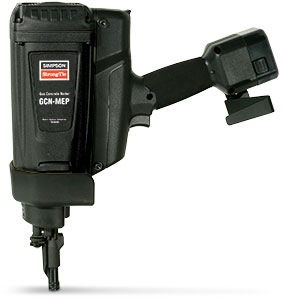

Simpson NEW GAS-Actuated Concrete Nailer, 1-1/2"cap. 2-Tools in one-Single Shot or Magazine KIT,SIMGCN-MEPKT

FEATURES

• Easy magazine attachment with no extra tools
• Power to drive .125" diameter pins
• Pin-depth control dial
• Easy nose piece change-out (for .25" and .300" fasteners) with no extra tools
• High-voltage spark for cleaner fuel combustion
• Comfortable, "sure-grip" rubber handle
• Battery charge indicator light

SPECIFICATIONS

• Tool dimensions:

  Length – 15.3" (439mm), 17.3" with magazine
  Width – 4.2" (107mm)
  Height – 15.3" (389mm)
• Tool weight: 8.3 lbs (3.7kg)
• Suitable Fasteners:

  Length – 1/2" (12.7mm) to 1 1/2" (38mm)
  Diameter – For .25" and .300" headed pins
• Magazine capacity: 40 + 2 pins*
• Average number of shots per fuel cell: 1,200
• Average number of shots per battery charge: 3,300
• 6V NiMH batteries
• Average battery charge time: 2 hours
• Operates at temperatures between
  20°F–120°F (-6°C –49°C)
• 2 shots per second

*To ensure the tool does not discharge without pins in the magazine, all but the last two pins will be used before reloading is necessary.

KEY FASTENING APPLICATIONS

• Conduit clips
• Ceiling clips
• Low-voltage cable
• Cable straps
• Drywall track to concrete, steel, CMU or lightweight concrete on metal deck with magazine

THE GCN-MEP GAS-ACTUATED CONCRETE NAILER KIT INCLUDES:

•  GCN-MEPMAG
• 2 Batteries
• Battery charger
• Allen wrenches
• Safety glasses and ear plugs
• Operator's manual/tool schematic
• Rugged tool box

REPLACEMENT PARTS

GCN-MEPKT

FUEL CELL

GFC34

The GFC34 fuel cell is designed to operate with the GCN150 and GCN-MEP Gas-Actuated Concrete Nailers and also works with many major brand gas concrete-nailer tools. The fuel cell provides 1,200 shots and can operate at temperatures between 20°–120°F (-6°–49°C). The fuel cells are offered in a 2-per-pack clamshell. Additionally, one fuel cell is included with each pack of 1,000 pins.

Gas Fuel Cells

TrackFast® is a registered trademark of ITW.
Track-It® is a registered trademark of Powers.

COMPATIBLE FASTENERS

GCN-MEP Gas-Actuated Pins and Assemblies for
Mechanical, Electrical and Plumbing (MEP) Applications

New, pre-assembled MEP fasteners are available for use with the GCN-MEP gas-actuated concrete nailer designed for high-volume applications such as affixing conduit clips, rod hangers, cable ties and drywall track. With their .300" heads, these versatile pins and assemblies can also be used with common powderactuated tools when fastening into harder substrates (structural steel or extra hard concrete) when required.

Codes: ICC-ES ESR-2811 (PDF), Florida Statewide Product Approval FL15730

Mechanical, Electrical and Plumbing Pins
All pins are .125" diameter x 1" except where specified

See load value information

GRH

GCC

GCL

GAC

GCT

GW

GTS

GTH

GDP Strip Pins (with GCN-MEPMAGKT and 1 fuel cell)

GDP concrete pins are designed to work with the GCN150 and GCN-MEP (with magazine attached) gas-actuated concrete nailer tools as well as with most major brand gas concrete-nailer tools. The 10-fastener patented strip is designed with break-away plastic. The pins are designed for use in A36, A572 and A992 steel, concrete and CMU block.

Codes: ICC-ES ESR-2811 (PDF), City of Los Angeles RR25837 (PDF), Florida Statewide Product Approval FL15730

See load value information

The GDPS pins are designed to work in the GCN150 and GCN-MEPMAG gas-actuated nailer tools for installation into A36, A572 Grade 50 and A992 structural steel. The step-shank pin, with smaller-diameter tip, facilitates easier penetration into the steel, while the larger diameter upper shank provides more shear resistance and successful installation.

GDPSK gas pins are designed for attaching plywood and OSB to cold-formed steel studs. The spiral knurl provides a positive lock and resists back out. Installed with the GCN150 concrete nailer or GCN-MEP (with magazine) concrete nailers, the GDPSK-138 gas pin provided faster installation and set up times, which contributes to lower labor costs. The hardened pins quickly and cleanly pierce the cold-form steel and leave the pin head flush with the wood fixture. The 1 3/8" length pin can be used for ½"–¾" thick plywood, and 14–22 gauge steel.

GDP
(U.S. Patent 605,016)

GDPS

GDPSK
