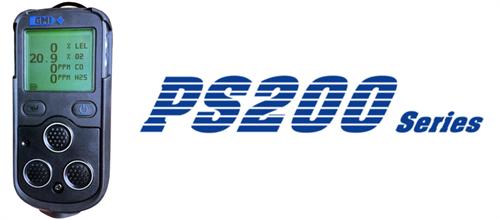

GMI PS200 4-Gas Monitor. monitors CH4/O2/CO/H2S, GMI64141
Overview
A robust and accurate portable gas detector, the Personal Surveyor (PS200 Series) provides unrivalled protection in confined space applications with audible and visual alarms in the event of exposure to flammable or toxic gases.
Detecting and displaying up to 4 gases simultaneously, PS200 is suitable for a host of applications in a variety of industries. The PS200 can be configured to detect a combination of Methane, Oxygen, Carbon Monoxide, Hydrogen Sulphide, as well as other flammable gases.

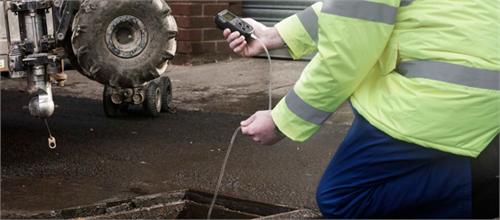

Pre-entry checking can be carried out with the optional internal sampling pump, and diffusion operation ensuring maximum battery life in confined spaces.
Included Accessories
- USB Charging / Comms Cable
- Universal Power Plug (Mains to USB)
- User CD-ROM (including handbook)
- Quick Operating Instructions
- 3m / 10ft PVC sample line with Quick Connector (pumped version only)
Call our sales team today on +44 (0)141 302 8302 or ask them a question about the PS200 Series.
Features
- Simple 1-button operation
- Measures up to 4 gases:
- CH4 - Methane (LEL)
- O2 - Oxygen
- CO - Carbon Monoxide
- H2S - Hydrogen Sulphide
- Other flammable gases, available on request
- Audible, visual and vibrating alarms
- Internal pump (optional)
- Lightweight yet robust construction
- Sensor integrity checking
- Ease of maintenance
Applications
- Personal safety in confined space - CH4/O2/CO/H2S hazards
- General safety in confined space
- Shipping - general
- Shipping - fumigant
- Breweries
- Plant shutdown
- Permit to work systems
- Pressurised tunnelling
- Fleet auxiliary
Technical Specification
Measuring Ranges
LEL 0 - 100% in 1% LEL increments
O2 0 - 25% in 0.1% increments
CO 0 - 1000ppm in 1ppm increments
H2S 0 - 100ppm in 1ppm increments
Certification
IEC Ex ia d IIC T4 Gb
ATEX Ex II 2 G Ex ia d IIC T4
CSA Class I Div 1 Groups A,B,C,D, T4 Class 1, Zone 1 EX ia d IIC T4
MED (0038/YY) - Module B & E
CE 0518
Alarms
Highly visible flashing LED
Ultra loud audible alarm, 95dBA
Vibrations
Physical Properties
Dimensions (Height x Width x Depth): 121 x 59 x 32 mm
Weight (with pump): 230g
Weight (without pump): 215g
Environment
Temperature Limits: -20 oC to +50 oC / -4 oF to +122 oF
Humidity: 0 - 95% RH non-condensing
Sampling System
Diffusion operation
Optional internal sampling pump
Power Supply
Lithium Ion rechargeable battery
Run Time (diffusion): > 14 hours
Run Time (pumped): > 8 hours
Charging Time: less than 4 hours
Enclosure
High impact rubberized polycarbonate case
IP Rating
IP67 (Dust-tight and waterproof to 1m / 3ft)
Drop Test
3m / 10ft
Warranty
2 years as standard
|
|
