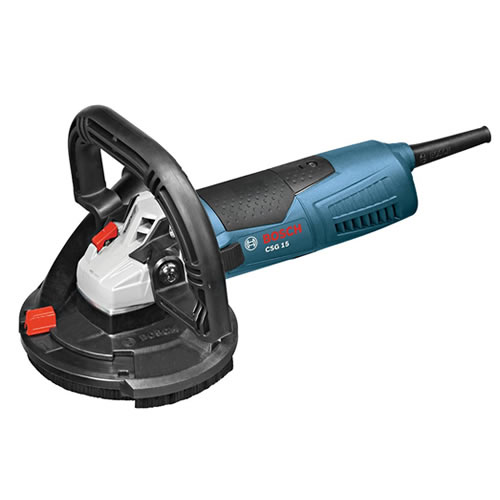

5" Concrete Surfacing Grinder w/ Dust protection, Heavy Duty,Bosch, BOSCSG15

MSRP: $699.00
You Save: $320.00 (46 %)
Bosch Tool Corp
Manufacturer: Bosch Tool Corp
Manufacturer Part No: CSG15

Power is the only word that counts when concrete is the job at hand. The Bosch CSG15 5" Surface Grinder employs maximum 12.5 amp, 9300 RPM power for that extra push in concrete grading, surface preparation, concrete cleaning and other harsh concrete applications. And all of that power and speed combines with constant response electronics to deliver the benefits of soft-start, smooth operation, constant speed under load and overload protection.


What separates this grinder from others is its comprehensive guard/shroud system for collecting dust. The Bosch CSG15 features an innovative shroud with a proprietary guard-opening system that allows flush grinding up to walls. This is critical in some jobs where the entire surface needs to be removed.


When there are obstructions to work around and hard-to-reach areas, it's a necessity to have a grinder powerful enough to get the job done, but small and light enough to handle easily. The Bosch CSG15 Surface Grinder features a wrap-around auxiliary handle that offers multiple grip positions for even the most difficult tasks.


A four-stage sealing system integrated into the output shaft and double-sealed ball bearings effectively seal the gear housing and gears against dust. A sealed switch extends life and epoxy-coated field windings add to overall system protection.


For optimum dust collection and ease of use, the Bosch CSG15 features a brush ring where the shroud contacts the concrete surface. The brush ring combines with air vents on top of the shroud to further channel dust. This allows the necessary air to be pulled into the shroud so that the dirty, dust-filled air can be sucked through the dust port and into a vacuum. The brush rings also provide an added benefit by allowing the shroud to collect dust even over slightly  uneven surfaces. The dust port is 1-3/8" diameter, which fits Bosch dust extraction vacuums.


The Bosch CSG15 Surface Grinder includes a case, a diamond cup wheel and an extra brush ring. Adaptors are available to configure the dust port to other common vacuum hose nozzle diameters.


The 5 in. Concrete Surfacing Grinder offers a maximum of 12.5 Amp power in concrete grading, surface preparation and other harsh concrete applications. Its best-in-class guard system supports ergonomics and dust collection, while the sealed motor and sealed switch add to extended product life. The motor withstands extended load in reaching areas where walk-behind units can't reach and the Constant Response Electronics technology maintains speed under load.
  • 12.5 Amp for superior performance
  • New guard system
  • Four-stage dust intrusion seal
  • High torque to handle sustained loads
  • 5 in. Concrete Surfacing Grinder - CSG15
  • (1) Auxiliary Handle - 3601303017
  • (1) Flange Kit - 3600210125
  • (1) Spanner Wrench - 1607950043
  • (1) 5 in. Diamond Cup Wheel - DC510
  • (1) Vacuum Adapter - VAC002
  • (1) Carrying Case - 3605438057


Length: 13.75 in.
Height: 6 in.
Weight: 5.95 lbs.
AC Voltage: 120V
Amperage: 12.5
Cord Length: 13.5 ft.
Power Type: Electric
RPM: 9,300
Wheel Diameter: 5 in.
